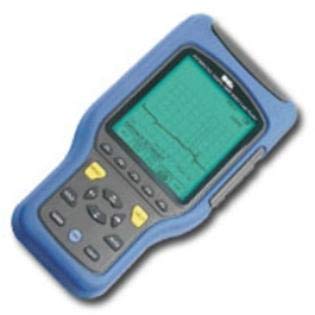

LABSCOPE/GRAPHING MULTIMETER/CODE READER

• 2 Channel Digital Storage Oscilloscope
• TRMS Graphing Multimeter
• OBDII Code Reader
• Quickly diagnoses automotive faults from making voltage checks, reading codes, resetting malfunction indicator lamps to viewing signal waveforms
• Also includes a library of known good patterns with preset test parameters for common automotive signals, each test can be fine tuned to view any portion of the signal for furthur analysis
• You won't find many dual channel scopes that offer these powerful features and none provide the combination of useful tools, creating a new level of value not found in the market today.

Features of the Digital Storage Oscilloscope:

• Sample rate 25 Meg per second
• 51 Pre-set waveforms that include sensor, actuator, electrical and ignition patterns
• DC to 5 MHz Bandwidth
• Sweep rate 1uS to 50 seconds in the scope mode
• "Glitch Snare" mode captures, displays and optionally saves abnormal signal patterns in Scope or Component Test modes
• Secondary Ignition displays the waveform and includes spark voltage, RPM, burn time and burn voltage
• Parade pattern on secondary ignition "Parade" mode
• Built in "Help" includes test procedure showing how to connect to the circuit, a sample of the expected waveform, theory of operation and troubleshooting tips
• Optional Diesel accessory to test injector pump timing and RPM

Features of the Graphing Meter:

• TRMS Graphing Multimeter
• 5 seconds to 24 hour sweep rate
• AC/DC Volts
• Ohms, Continuity, Diodes
• Frequency, Duty Cycle, Dwell
• Ignition Peak and Burn Volts, Ignition Burn Time
• Amps (with optional adapter)
• Temperature (with optional adapter)

Features of the OBDII Code Reader:

• Active and Pending Codes
• Generic and Manufacture Specific Definitions (GM, Ford, Chrysler, Toyota and Honda)
• I/M Readiness Monitor Status Indicaiton
• Erase DTC's (diagnostic trouble codes) and reset MIL capability
• USB interface easily supports future updates (software sold separately)
