VACUUM BRAKE BLEEDER

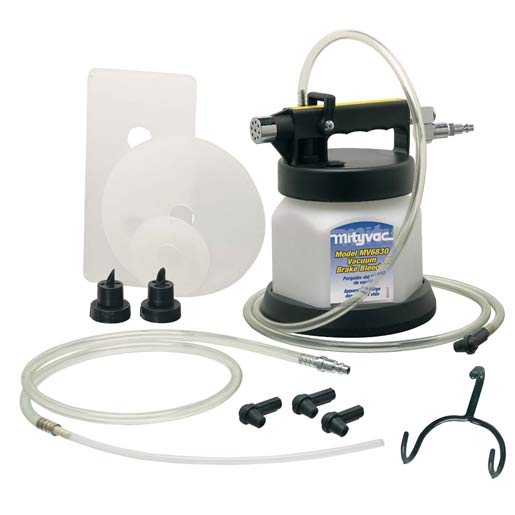

• The compressed-air-operated MV6830 offers professional grade brake and clutch bleeding performance. This compact yet powerful unit bleeds up to 2 quarts (1.9 liters) per minute, and its simple operation allows clean, quick bleeding of brake and clutch lines. Kit includes an advanced selection of accessories that ensure maximum convenience and performance for greater productivity.

Specifications

• Reservoir Capacity – 1.9 quarts (1.8 liters)
• Working Pressure – 60 - 150 psi (4.1 - 10.3 bar)
• Vacuum @ 90 psi (6.2 bar) – 26 in. Hg (88 kPa)
• Air Consumption @ 90 psi (6.2 bar) – 4.3 cfm (2.0 l/s)
• Flow Rate @ 60 psi (4.1 bar) – 50 oz/min (1460 ml/min)
• Flow Rate @ 90 psi (6.2 bar): – 70 oz/min (2100 ml/min)
• Flow Rate @ 150 psi (10.3 bar): – 70 oz/min (2100 ml/min)
• Inlet Thread Size: – 1/4" NPT
• Packaged Weight: – 5.0 lbs. (2.3 kg)
• Size: – 9" tall x 6.5" dia. (230 mm tall x 150 mm dia.)
