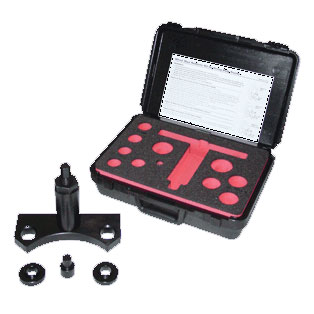

HEAVY-DUTY TRUCK WHEEL STUD REMOVER SET

• Used to push out button head serrated type wheel studs used on medium and heavy-duty trucks, buses, and motor coaches.
• The HD Truck Wheel Stud Remover Kit fits the most common bolt circle on the market (10-hole 11.25" bolt circle) which covers 85-95% of the market!
• This tool does not require a hydraulic power pack.
• Used to remove damaged and broken studs, as well as studs that have broken off shear with the hub face.
• Tool consists of a base plate and housing that mount to the truck's hub using the adjoining two wheel studs.
• Remover tool accurately self centers over the damaged stud/s.
• The crew shaft and screw shaft cap can be driven with a 3/4" socket and pneumatic impact wrench.
• M22 adapter bushings allow the base plate to be mounted to a "hub piloted mounting" type hub.
• Can be used to remove studs up to 1-1/8" in diameter and up to 4-1/4" of stand out length.

APPLICATIONS

• 10-hole 11.25" BC 8.73" hub truck, class A RV
• 10-hole 11.25" BC 8.67" hub bus
• 10-hole 285.75mm BC 220.1mm hub truck, class A RV
• Also available, to complete all of your wheel stud service needs is the Heavy-duty Truck Wheel Stud Installer Set (part no. 800) or to kill two birds with one stone, there is also the Heavy-duty Truck Wheel Stud Installer and Remover Set (part no. 820)
